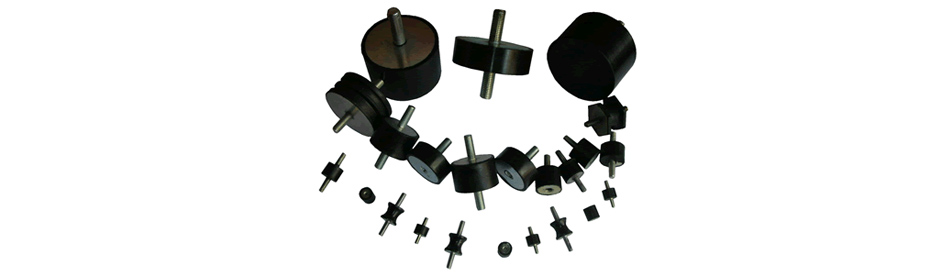

Titreşim Takozları

Titreşim Takozları

MOUNT BOLT&NUT
DIAMETER LENGTH METRIC LENGTH
mm. mm. M. mm.
Ød h M L1/L2
10 8 4 8
10 10 4 8
10 15 4 8
10 20 4 8
12 10 4 8
15 8 5 10
15 10 5 10
15 15 5 10
15 20 5 10
15 30 5 10
20 8 6 15
20 10 6 15
20 13,5 6 15
20 15 6 15
20 20 6 15
20 25 6 15
20 30 6 15
25 10 6 18
25 15 6 18
25 20 6 18
25 25 6 18
25 30 6 18
MOUNT BOLT&NUT
DIAMETER LENGTH METRIC LENGTH
mm. mm. M. mm.
Ød h M L1/L2
30 15 8 20
30 20 8 20
30 25 8 20
30 30 8 20
30 40 8 20
40 20 8 20
40 30 8 20
40 40 8 20
50 20 10 28
50 25 10 28
50 30 10 28
50 35 10 28
50 40 10 28
50 45 10 28
50 50 10 28
MOUNT BOLT&NUT
DIAMETER LENGTH METRIC LENGTH
mm. mm. M. mm.
Ød h M L1/L2
60 30 12 32
60 40 12 32
70 35 12 37
70 40 12 37
75 25 12 37
75 40 12 37
75 50 12 37
75 55 12 37
100 30 16 42
100 40 16 42
100 50 16 42
100 55 16 42
100 60 16 42
100 75 16 42
100 60 16 46
100 60 16 50
125 60 20 52
140 60 20 52
150 60 20 52
